Deep Drawing Process Explained: From Blank to Finished Part

For OEM leaders and engineers, the difference between a reliable component and a production bottleneck often comes down to how that component is formed. Tolerances must be held well. Wall thickness must remain consistent. Secondary operations must align with schedule and cost targets.

The deep drawing process answers these challenges by transforming flat metal blanks into seamless, high-precision components that support demanding applications across industries.

This article explains the deep drawing process step by step, outlines what engineers should evaluate at each stage, and highlights how an integrated manufacturing partner improves outcomes from concept through shipment.

What Is the Deep Drawing Process?

The deep drawing process is a metal forming method used to create cylindrical components from flat sheet metal. A flat blank is placed over a die cavity and mechanically drawn into the die by a punch. As the metal flows inward, it forms into a seamless part with controlled geometry and structural integrity.

Unlike shallow forming methods, deep drawing is used when the depth of the part exceeds its diameter. The result is a one-piece component with excellent concentricity, strength, and repeatability.

For OEMs searching for deep drawn stamping solutions, it is important to understand that true deep drawing is a specialized forming discipline requiring controlled material flow, precision tooling, and engineering collaboration.

Step 1: Blank Preparation

Every successful deep drawn part begins with the blank.

Engineers evaluate:

• Material type
• Thickness
• Grain direction
• Surface finish requirements
• Tolerance expectations

Step 2: Tooling Design and Manufacturing Collaboration

Tooling is the foundation of the deep drawing process. Die geometry, punch radius, draw depth, and blank holder pressure must all work together to allow smooth material flow.

Manufacturer collaboration early in the design phase improves manufacturability and cost control. Solid modeling tools such as SolidWorks enable high-precision simulations and allow teams to identify potential stress points before production begins.

Step 3: The Drawing Operation

Once tooling is prepared and blanks are cut, the forming process begins.

The blank is positioned over the die cavity and secured by a blank holder. The punch descends and draws the metal into the cavity in a controlled manner. Material flow must remain uniform to prevent defects such as:

• Wrinkling
• Tearing
• Earing
• Unwanted piercing
• Radius fractures
• Excessive wall thinning

In many cases, deeper parts require multiple draws to achieve final geometry without overstressing the material. Each redraw further refines shape and dimensional accuracy.

The ability to manage this progression consistently separates general forming operations from true deep drawing expertise.

Step 4: Secondary Operations and Finishing

For many OEMs, the forming operation is only part of the challenge. Surface finishing, polishing, plating, coating, and other treatments often require coordination between multiple vendors.

Fragmented supply chains introduce complexity, cost, and scheduling risk. When secondary processes are integrated under one coordinated system, quality accountability improves and lead times stabilize.

Ongoing supply chain volatility has driven many manufacturers to streamline supplier networks, reduce freight exposure, and consolidate operations under fewer, more accountable partners. For project managers overseeing complex builds, centralized accountability protects both schedule and reputation.

Integrated production supports:

• Reduced handling
• Fewer transit delays
• Improved quality control
• Simplified procurement management

Step 5: Inspection and Quality Assurance

Precision is non-negotiable in deep drawn components.

ISO 9001:2015 quality systems ensure repeatable processes, documented inspection protocols, and continuous improvement standards. For industries with regulatory requirements, ITAR registration adds another layer of compliance confidence.

Inspection checkpoints typically include:

• Dimensional verification
• Surface finish review
• Concentricity measurement
• Wall thickness evaluation

Engineers gain confidence when quality control is embedded into every stage rather than treated as a final checkpoint.

Step 6: Shipping, Inventory, and Long-Term Supply Stability

Reliable manufacturing does not end at production.

Inventory management programs and domestic sourcing improve lead time predictability. For OEM executives managing lean operations or Just-In-Time production schedules, supply stability directly affects profitability. A stable, domestic supply chain reduces uncertainty and strengthens long-term production planning.

Deep Drawing Process Comparison

Below is a high-level comparison of forming approaches relevant to OEM component design:

Deep Drawn Metal Stamping: Tolerances, Cost Drivers, and Design Rules

Deep drawn metal stamping is a forming process used to produce seamless, hollow metal parts at production scale. Engineers typically evaluate deep drawn stampings when part depth, structural integrity, or repeatability make machining or shallow stamping inefficient.

This article walks through the process first, then explains when deep drawing makes sense, how tolerances behave, what drives cost, and how to design parts that scale into high-volume production.

How Deep Drawn Metal Stamping Works

Deep drawing forms a flat metal blank into a hollow shape by pulling material into a die cavity using a punch. The material flows plastically rather than being cut, which creates a seamless part with work-hardened strength.

Depending on depth and geometry, parts may require multiple draw stages, trimming, or secondary forming. Each added step improves control but increases cost and tooling complexity.

Understanding this sequence is critical because tolerances, cost, and quality are all tied to how many operations are required.

When Deep Drawn Stampings Are the Best Choice

Deep drawn metal stamping is typically the right solution when:

• The part must be seamless and weld-free
• Depth exceeds what shallow stamping can form
• Consistent wall structure is required
• Production volumes justify dedicated tooling
• Secondary operations can be minimized or integrated

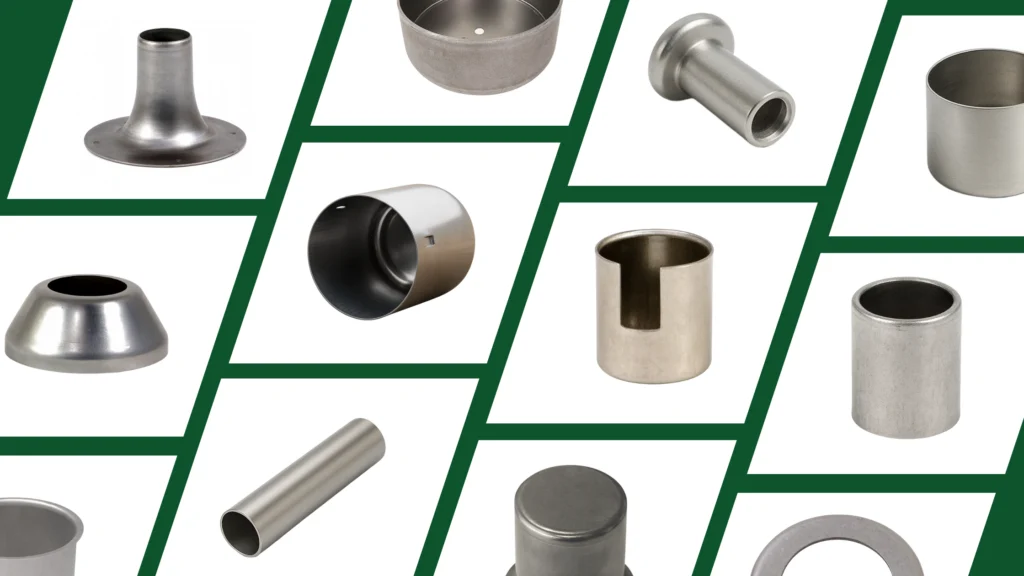

Common examples include metal cups, housings, shells, covers, and enclosures.

How Tolerances Behave in Deep Drawing

Deep drawing is a forming process, not a precision machining operation. Tolerances vary by feature and are influenced by material flow and springback.

Outside diameters are often controlled after drawing through trimming or sizing. Wall thickness varies naturally through the part, with thinning along the walls and thicker material at the base. Overall height is affected by draw depth, springback, and trim strategy. Roundness depends on material properties, draw balance, and tooling condition.

Tighter tolerances generally require secondary operations. Engineers should identify which dimensions are functionally critical and allow other features to remain form-controlled.

What Has the Biggest Impact on Tolerance

Several factors directly affect dimensional consistency:

• Material thickness and alloy behavior
• Part depth and draw ratio
• Tooling condition and wear
• Springback after forming
• Trim operations and secondary forming

Designs that demand tight tolerances early in the draw sequence increase risk and cost.

Tooling Cost and What Drives It

Tooling is the primary upfront investment in deep drawn metal stamping. Tooling cost increases with:

• High draw ratios requiring multiple redraws
• Complex geometry or non-uniform profiles
• Tight tolerance requirements
• Integrated secondary features
• Less forgiving materials

Costs can often be reduced by simplifying geometry, using larger radii, avoiding unnecessary depth, and locating critical features after the draw. Tooling investment is best suited for repeat, high-volume production where cost can be amortized over many parts.

Deep Drawn Part Design Best Practices

Good design improves both cost and manufacturability:

• Use generous corner and transition radii
• Accept natural wall thickness variation
• Keep draw ratios conservative
• Design to manage wrinkling, tearing, and earing
• Pierce holes after drawing when accuracy matters

Early input from your manufacturer prevents redesigns later in the program.

Scaling from Prototype to Production

Deep drawn parts often behave differently at prototype and production volumes.

As volume increases:

• Tooling becomes more refined
• Process controls tighten
• Inspection methods become standardized
• Secondary operations may be integrated

Designs created with scalability in mind transition more smoothly into high-volume metal stamping.

Quality and Process Controls Engineers Should Expect

Typical controls include incoming material verification, in-process dimensional checks, tool wear monitoring, and final inspection based on print requirements. Formal quality systems support repeatability and traceability.

What Engineers Should Take Away

Deep drawn metal stamping is not just about forming depth. It is about understanding how material flows, where variation is unavoidable, and which features should be controlled through design versus secondary operations.

Engineers who get the best results from deep drawn stampings typically:

• Design parts around natural material behavior instead of fighting it
• Allow non-critical features to remain form-controlled
• Specify tight tolerances only where function demands it
• Engage manufacturing input early to reduce redraws and secondary work
• Design with production scale in mind, not just prototype feasibility

When these principles are applied early, deep drawing becomes a highly repeatable, cost-effective process for high-volume metal components.

When It Makes Sense to Involve a Manufacturer Early

Manufacturing input is most valuable when:

• Draw depth or draw ratio is aggressive
• Wall thickness consistency is critical
• Secondary operations are driving cost
• Hole placement or post-draw features affect function
• The part must scale reliably into high-volume production

Early collaboration helps identify design adjustments that reduce tooling complexity, improve yield, and stabilize long-term production.

Contact Us

If you are designing or sourcing a deep drawn metal stamping and want feedback on tolerances, cost drivers, or manufacturability, contact Accurate Forming to discuss your application.

Deep draw stamping is often misunderstood or treated as a niche variation of metal stamping. In reality, it is a core manufacturing process for producing strong, seamless metal parts that cannot be made efficiently with traditional stamping methods.

If your part is cylindrical, cup-shaped, enclosed, or requires depth that exceeds its diameter, deep drawn stamping is usually the right process. This article explains how deep draw stamping works, where it makes sense, and when it clearly outperforms conventional stamping.

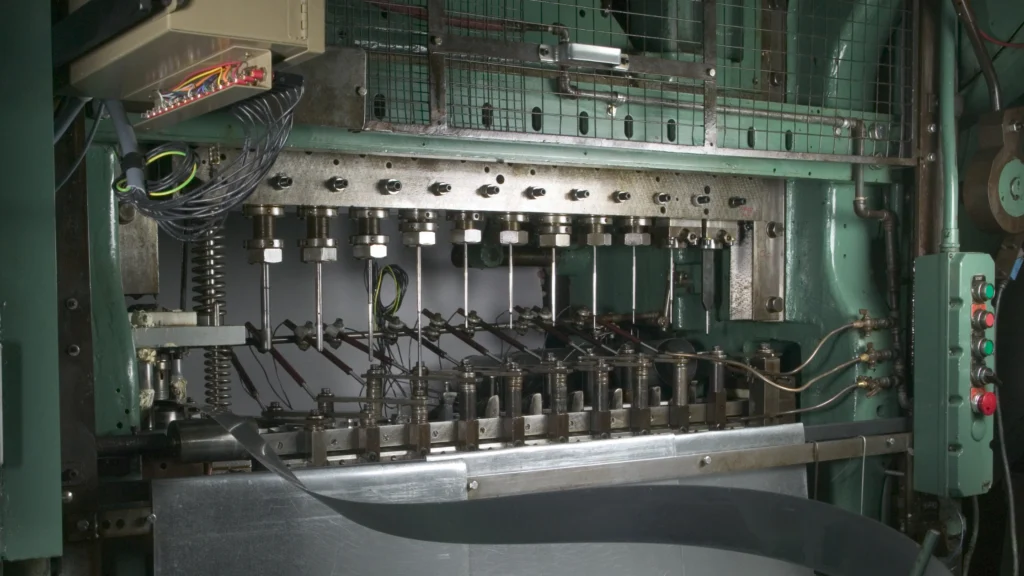

What Is Deep Draw Stamping

Deep draw stamping is a metal forming process that pulls sheet metal into a die cavity using a punch. Instead of cutting or bending the material into shape, the metal flows plastically under controlled pressure to form a deep, hollow part.

A part is generally considered “deep drawn” when the depth of the formed section is equal to or greater than its diameter. Examples include metal cups, cans, housings, shells, and enclosures.

Unlike shallow stamping operations, deep draw stamping reshapes the metal over multiple stages, allowing significant depth without tearing, wrinkling, or excessive thinning.

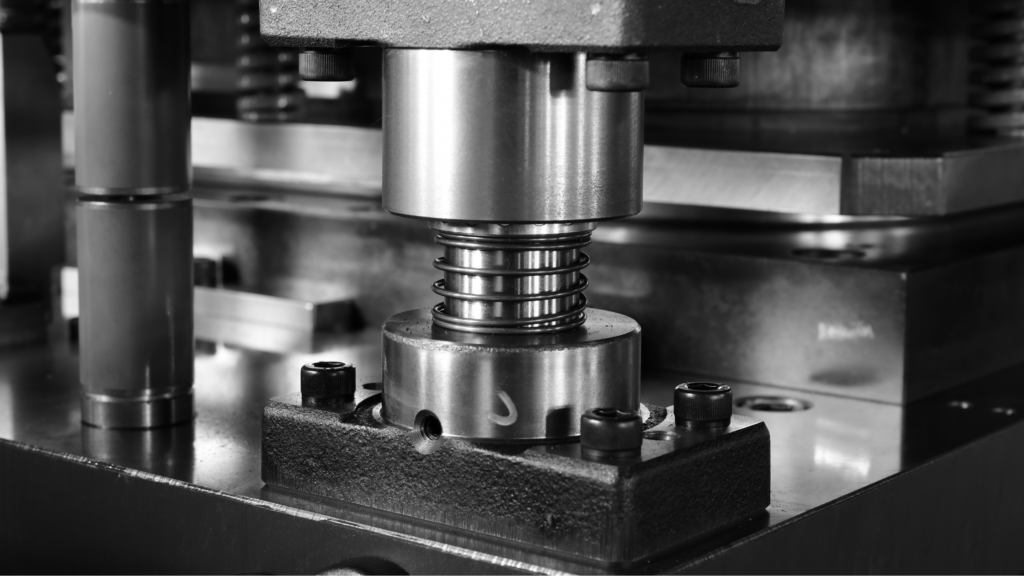

How the Deep Draw Stamping Process Works

At a high level, deep draw stamping works like this:

1. A flat metal blank is placed over a die opening.
2. A blank holder applies pressure to control metal flow.
3. A punch pushes the metal into the die cavity.
4. The metal stretches and flows inward instead of shearing.
5. The part may go through multiple redraw stages to achieve final depth.

Each draw stage incrementally deepens the part while managing wall thickness and material stress. Lubrication, tooling geometry, and draw ratios are tightly controlled to prevent defects.

In many cases, secondary features such as flanges, beads, holes, or trim edges are added in the same tool or integrated draw sequence.

This ability to combine forming steps is a major advantage of deep drawn stamping.

How Deep Draw Stamping Differs from Traditional Stamping

Traditional stamping typically relies on cutting, bending, or shallow forming. It is well suited for flat parts, brackets, clips, and components with limited depth.

Deep draw stamping is fundamentally different in three ways:

• The material flows instead of being cut or sharply bent. This produces seamless walls and uniform strength.
• The process creates enclosed or semi-enclosed shapes that would otherwise require welding or machining.
• Deep drawn stamping often replaces multiple manufacturing steps with a single progressive process.

If a part requires welding, tubing, or machining to achieve its final shape, deep drawn stamping may be a better alternative.

Key Advantages of Deep Draw Stamping

Seamless, One-Piece Construction

Deep drawn stamping produces parts without seams or welds. This improves strength, pressure resistance, and leak prevention. It also eliminates failure points common in fabricated assemblies.This is critical for medical, defense, electronics, and fluid-handling applications.

Improved Structural Strength

The drawing process work-hardens the metal as it flows. This increases strength along the walls of the part without adding thickness. For cylindrical or enclosed components, this often results in stronger parts than welded or machined equivalents.

Better Dimensional Consistency at Scale

Once tooling is dialed in, deep draw stamping delivers excellent repeatability across high volumes. Wall thickness, concentricity, and depth control are more consistent than multi-step fabrication. This makes the process ideal for repeat production runs.

Lower Per-Part Cost at Volume

Tooling costs are higher upfront, but piece price drops significantly at scale. Deep drawn stamping reduces labor, welding, machining, and inspection steps. For production volumes in the tens of thousands or higher, it is often the lowest total cost option.

Cleaner Aesthetics and Surface Finish

Because the metal is formed rather than cut and assembled, deep drawn parts have smooth surfaces and uniform appearance. This matters for consumer products, medical components, and visible housings.

When Deep Draw Stamping Beats Traditional Stamping

Deep draw stamping is not always the right choice. It clearly outperforms traditional stamping when the following conditions apply:

• The part depth is equal to or greater than its diameter
• The part is cylindrical, cup-shaped, or enclosed
• Seamless construction is required
• Welding or tubing would otherwise be needed
• Strength and pressure resistance matter
• High repeat volumes are planned

If your design requires secondary operations just to achieve basic geometry, deep drawn stamping should be evaluated early.

Best-Fit Applications for Deep Drawn Stamping

Deep drawn stamping is widely used across industries that demand precision, strength, and repeatability.

Medical and Laboratory Components

Common parts include housings, shells, cases, and enclosures used in diagnostic equipment, surgical tools, and fluid handling devices. Seamless construction improves cleanliness and reliability.

Electronics and Sensor Housings

Deep drawn metal provides EMI shielding, durability, and consistent dimensions for electronic enclosures and sensor bodies.

Defense and Ordnance Components

Strength, consistency, and traceability make deep drawn stamping suitable for military hardware, ignition components, and protective housings.

Automotive and Industrial Parts

Cans, covers, ferrules, and cylindrical components benefit from deep drawing where durability and cost control are required at scale.

Consumer and Commercial Products

High-end writing instruments, cosmetic packaging, and industrial markers often use deep drawn metal for both function and appearance.

Design Considerations for Deep Draw Stamping

Designing for deep draw stamping requires different thinking than flat stamping.

• Wall thickness must be managed to avoid thinning beyond material limits. Radii should be generous to allow smooth metal flow. Sharp corners increase the risk of tearing.
• Material selection matters. Common deep draw materials include stainless steel, aluminum, brass, copper, and low-carbon steel. Each behaves differently under draw pressure.
• Draw ratios determine how deep a part can be formed in each stage. Exceeding safe ratios increases scrap and tool wear.
• Early design-for-manufacturability involvement helps avoid redesigns and unnecessary tooling changes later.

Common Misconceptions About Deep Draw Stamping

One misconception is that deep draw stamping is only for very large volumes. While it excels at scale, many projects start at moderate volumes and grow over time.

Another misconception is that tolerances cannot be controlled. In reality, deep drawn stamping can hold tight tolerances when tooling and process control are done correctly.

Some assume deep drawing limits part complexity. In practice, features like flanges, steps, beads, and cutouts can often be integrated into the draw process.

Choosing a Deep Draw Stamping Partner

Deep draw stamping is not forgiving of inexperience. Tooling design, material behavior, lubrication, and process control all determine success.

When evaluating suppliers, look for proven deep drawing experience, design-for-manufacturability involvement early in the process, and the ability to integrate secondary operations instead of outsourcing them.
